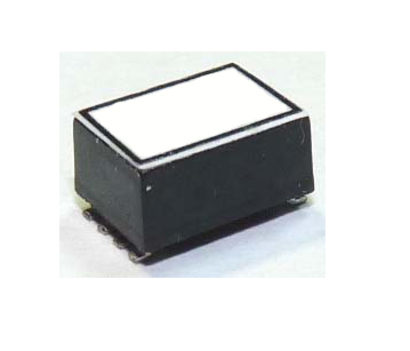

Pulse Transformer
FEATURES/SPECIFICATION
Excellent SMD performance
Operating temperature range: 0°C to +70°C
Reflow Condition :Maximum reflow temperature is 250°
C/-5°C, time is 20~40 sec. (Refer to IPC/ JEDEC
J-STD-020C standard).
| Specifications | ||||
| Part Number | Turn Ratio @100KHz ,1V (1-4):(5-8) | Inductance LP @100KHz,100mV (1-4) | Inductance LP @100KHz,100mV (5-8) | Leakage Inductance Ls @ 100KHz , 50mV ( 1-4 ) , (5+8 short) |
| BT0801S | 1.33:1±5% | 177uH min | 100uH min | 1.0 uH max |
| Specifications continue | ||||
| Part Number | DCR @10 KHz ,100mV (1- 4) | DCR @10 KHz ,100mV (5- 8) | Inter Winding Capacitance Cs @100 KHz,0.1V ( 1-4 TO 5-8 ) | HI-POT ( 1-4 ) , ( 5-8 ) 2sec/60Hz |
| BT0801S | 0.6 Ω max | 0.4 Ω max | 25pF max | 1500 VAC |
