1. MATERIALS

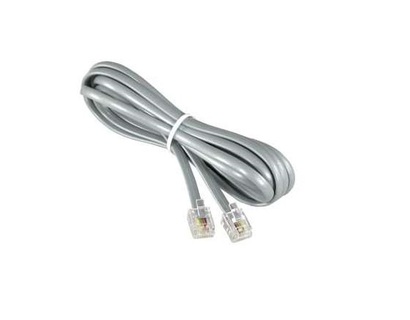

  1.1 RJ11 PLUG, 6P2C

     1.1.1 CONTACT: COPPER ALLOY,GOLD FLASH, NICKEL UNDERPLATE

     1.1.2 INSULATION: PC,TRANSPARENT, UL94V-2

  1.2 NON-UL, 2C/28AWG

     1.2.1 CONDUCTORS:28AWG(7/0.12mm CCS)

     1.2.2 INSULATION: COLOR SEE WIRING DIAGRAM

  1.3 ALL COMPONENTS ARE RoHS COMPLIANT

2. ELECTRICAL TEST

  2.1 100% CONTINUITY

     2.2 INSULATION RESISTANCE: 10 MEGOHMS MIN. AT DC 300V

     2.3 CONDUCTIVE RESISTANCE: 3 OHMS MAX.

3. PACKING:

  3.1 SHIPPING CARTON WILL HAVE THE CUSTOMER PART NUMBER
